Ventilation | Poultry Ventilation & Fans

VENTILATION

Ventilation, heating and lighting all contribute significantly to creating a good living environment, resulting in healthier poultry and faster and more efficient growth.

We offer arrange of fans and inlets to influence temperature, relative humidity and airspeed to achieve an optimal climate in the poultry house. With the right ventilation and fans, conditions in the poultry house can be regulated by cooling, removing harmful substances and gasses, and supplying fresh air and oxygen.

Vostermans Multifans

Vostermans have developed the Multifan range of high-quality axial fans for all agricultural ventilation requirements, giving powerful and consistent airspeed.

Gigola Maxifans

Gigola & Riccardi supply top quality fans, providing robustness, durability, easy maintenance and high performance in terms of both airflow and energy efficiency.

VOSTERMANNS FANS

The Multifan Range

FANS

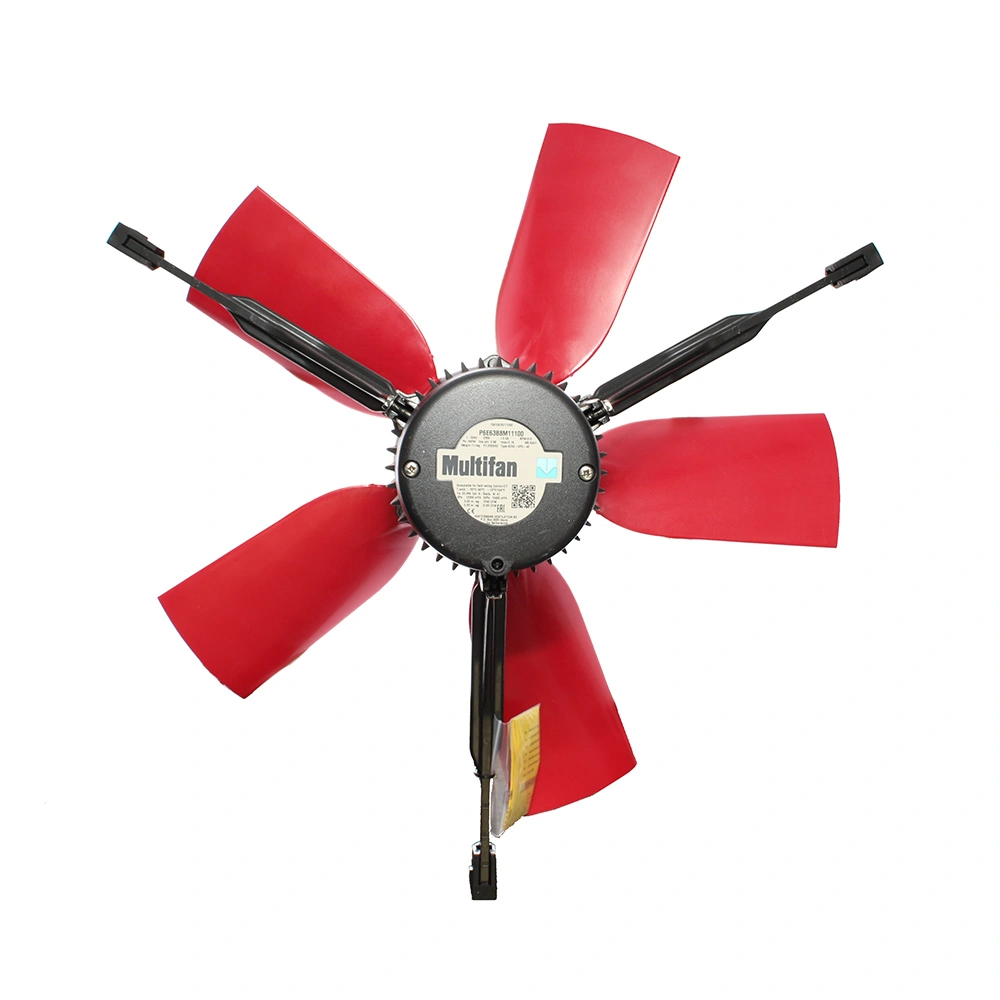

Multifan Tube Mounting Fans

Due to its high levels of flexibility, the tube mounting fans seamlessly fit every application. Available in custom sizes, they can be placed in any duct, tube, pipe or chimney and because of its flexible dimensions, is ideal for OEM applications.

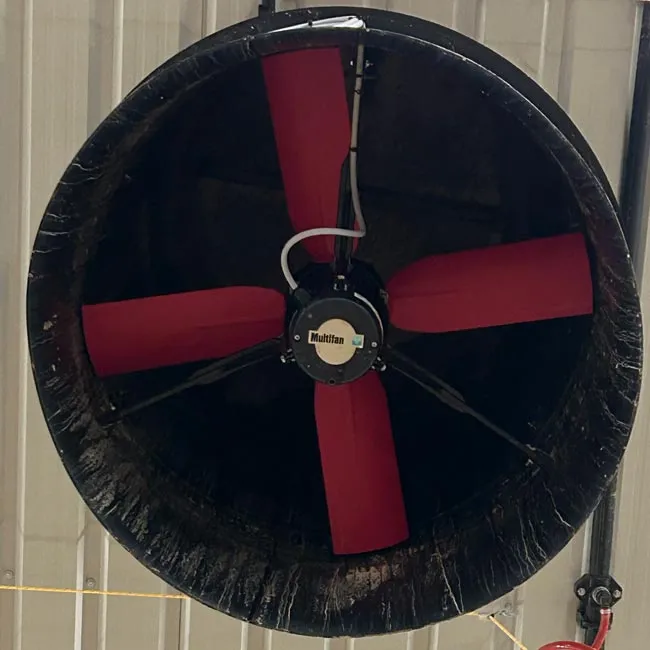

Large industrial ceiling fan with four red blades and a black frame mounted on a corrugated metal roof.

View Brochure

FANS

Multifan Panel Fans

One of the most versatile fans in the range. Normally mounted in a wall, these fans are offered in a variety of sizes and versions to suit every application and are resistant to a corrosive environment.

View Brochure

FANS

Multifan Galvanised Box Fans

Easily positioned in the external walls and widely used for effective ventilation of large buildings. This heavy-duty fan is designed for high velocity air circulation, making it ideal for demanding environments. Its compact design enables quick and easy installation and allows the use of air filters.

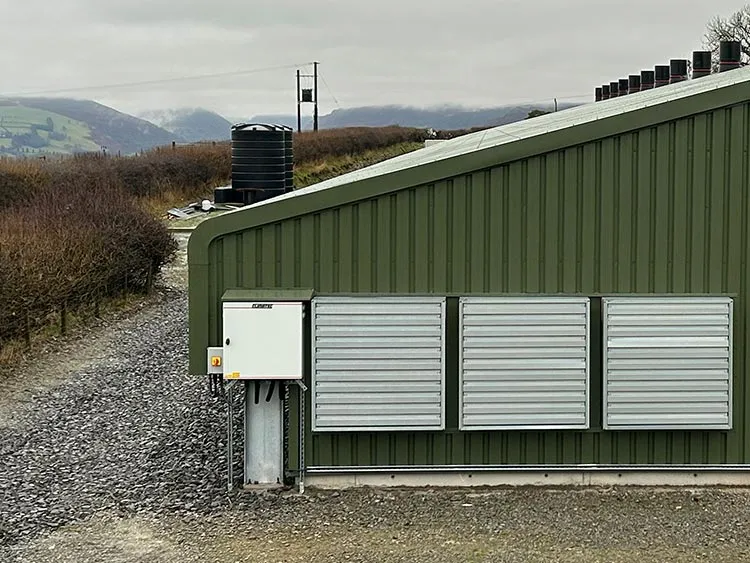

Green industrial building with three metal ventilation panels on its side and gravel pathway nearby.

View Brochure

FANS

Multifan Energy-efficient axial fans

These fans combine excellent performance and robust quality with significant energy savings, ensuring a good return on investment and a short payback period.

View Brochure

Climatec Group - Multifan Horizontal image

FANS

Multifan Horizontal circulation fan

This fan recirculates air over a long distance, rapidly creating a uniform indoor environment, while minimising energy consumption. Available in a variety of designs, these fans are ideal for high temperatures and humidity differences.

View Brochure

ROXELL FANS

Roxell Oxsano Tunnel Fan

Climatec Group - Multifan Tube Mounting image

FANS

Roxell Oxsano Tunnel Fan

Roxell's corrosion resistant fan for better performance and higher efficiency. The aerodynamic design and uniquely shaped fan blade means that this tunnel fan is amongst the most powerful on the market with an airflow of 30,600 CFM and an efficiency ration of 19,7 CFM /watt. The variable speed controller means that ventilation is adjusted to requirements with lower energy consumtion and optimal wind chill effect.

View Brochure

GIGOLA MAXIFANS

Maxifan range

FANS

Multifan Tube Mounting Fans

The Maxifan range is designed for area requiring greater ventilation rates, offering: High air output with low energy consumption | Balanced stainless steel fan blades | Corrosion resistant | Maintenance free with high grade bearings | Low noise and vibration levels | Solid galvanised sheet steel housing | Safety grilles on both sides | Available in a range of sizes and options | With or without automatic louvre system | Sizes available: 66 cms, 78 cms, 99 cms & 125 cms | Single phase motors supplied as standard | Three phase motors supplied to order

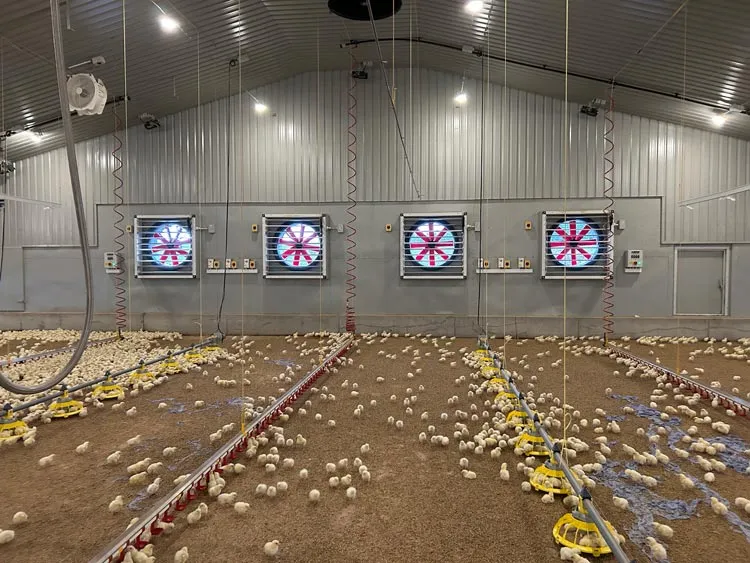

Indoor poultry farm with many chicks on the ground and large ventilation fans on the back wall.

View Brochure

Performance Information

Airflow in M3/hour

AIR INLETS

Air inlets are responsible for ensuring that fresh air is distributed evenly throughout the poultry house.

Our comprehensive range of Air Inlets are manufactured in high quality PVC giving excellent insulation values, preventing condensation and enabling significant savings on energy costs.

WIND HOODS / LIGHT-PROOFING AVAILABLE FOR ALL INLET OPTIONS

TPI Air Inlets

The TPI Air Inlet range for poultry houses have been specifically designed to improve both air quality and animal welfare.

SCAN-AIR Air Inlets

Manufactured from high-grade polyurethane with curved flap as standard, Scan-Air offer customised size options to fit any size aperture.

TULDERHOF Air Inlets

The Tulderhof Black line 4500 air inlet is manufactured from high quality polyurethane with a high insulation value - available as self-opening or self-closing.

AIR INLETS

TPI VUELA

The new Vuela air inlet has been designed as a replacement for the 145-VFG inlet and has an innovative V-shaped inner valve which guides the air jets for even and effective distribution of cool air throughout the poultry house. Giving excellent control from minimum to maximum capacity, the Vuela air inlet sets new standards for efficiency, durability and ease of use in ventilation technology.

View Brochure

AIR INLETS

TPI 3000-VFG-C

This inlet has a curved inner flap which is hinged in the centre and is suitable for most applications. Due to its design features, fresh air can also enter through the bottom of the flap. Equipped with all-round seals to prevent air leakage and curved inner corners to ensure better airflow. Available in normal opening standard version and a self-closing version on request.

View Brochure

AIR INLETS

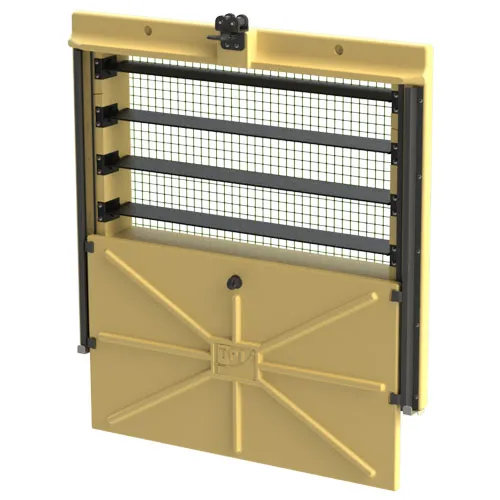

TPI OMNIFLUX

The Omniflux air inlet is developed for use in very wide houses or houses with obstacles. Air flow is controlled by sliding the plate up and down on a system of unique sliders and guide rails. The Omniflux side wall inlet system is often used in houses with aviary systems where air flow is essential throughout the house.The capacity of the Omniflux has been tested by the German DLG Institution.

View Brochure

AIR INLETS

SCAN-AIR INLETS

Scan-Air offer a range of options for standard air inlets but in addition are the ideal choice for those requiring customised size options. Manufactured from high grade polyurethane with curved flap as standard giving optimal air control with aerodynamic airflow and self-opening or spring closure options. Scan-Air will manufacture any size inlet to fit any size aperture.

View Brochure

AIR INLETS

TULDERHOF INLETS

The Tulderhof Black Line 4500 air inlet is constructed of high quality polyurethane with a high insulation value. Available as a self-opening or self-closing inlet. The aerodynamic airflow gives 4500 m3/hour 20 PA. The self-closing variant has the advantage of a delayed opening system if required, for example, 1 in 3 inlets opens first. Together with the option of a Jetstream valve, this gives total automatic control over the minimum ventilation. Also available are optional exterior plastic mesh frames to cover the inlet aperture.

View Brochure

Black rectangular outlet cover mounted on wall with a yellow locking device on top and two yellow side clips.

Interior of a large poultry barn with many chicks on the ground under a high arched ceiling and feeding lines.

Close-up of mechanical garage door components including black roller hanger and yellow cable tensioner.

Interior view of a large, well-lit poultry farm with rows of yellow chicks on the floor and feeding systems overhead.

Speak to our team of experts

Do you have a Ventilation project in mind? Speak to our team of experts who can help advise you every step of the way.

GEARDRIVES

We have a large range of DeGier geardrives for many applications

Wide range of reliable geardrives to ensure a healthy environment | DeGier geardrives combined with winch drums or TGA rack & pinion offers reliable inlet and window control | 3 standard sizes plus other sizes to special order | Built-in limit switches | Controls inlets with an operating length from 115 – 6,000 mm | Optional built-in feedback potentiometer | Numerous output styles available | Can be controlled by a range of digital controllers

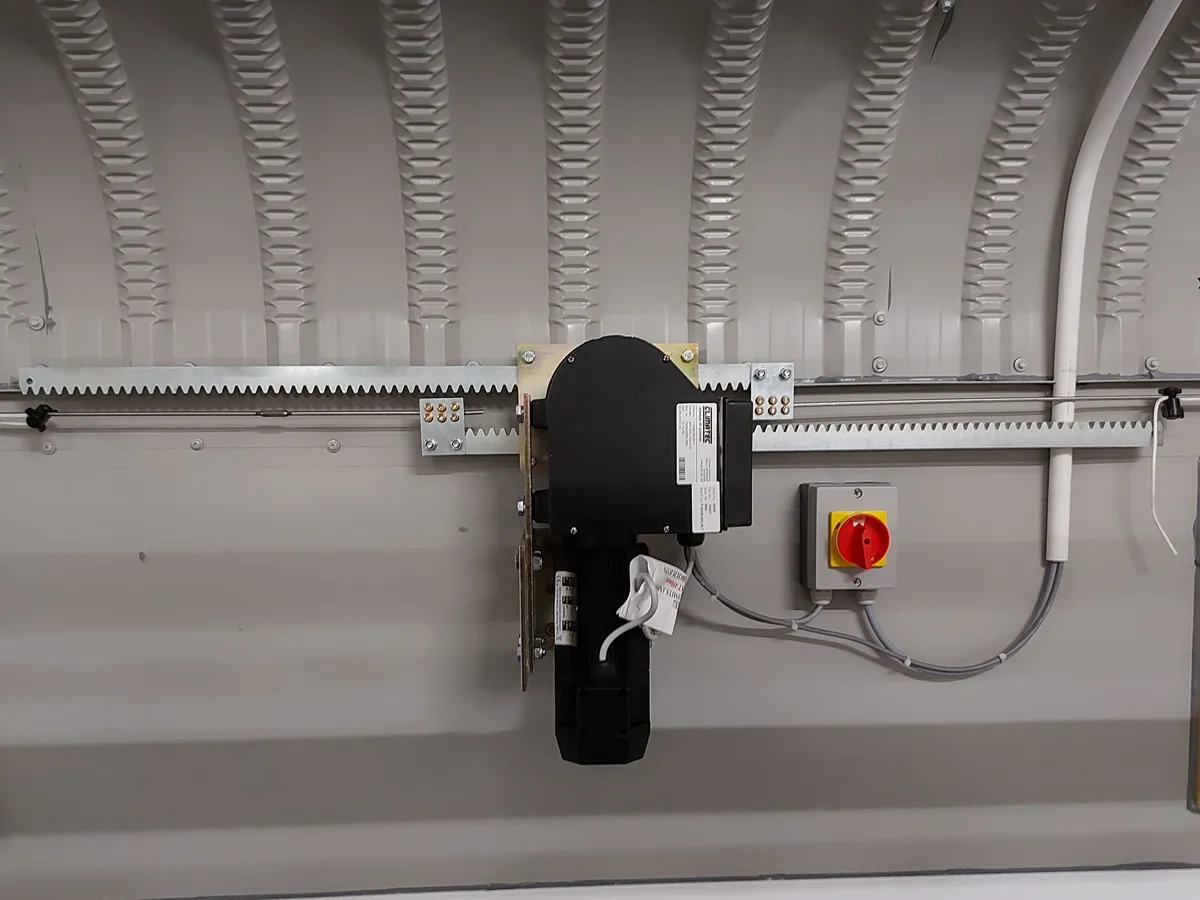

Electric garage door motor mounted on a wall with metal rack and a red power switch box.

Long indoor corridor with multiple beige ventilation hatches and a black motorized gearbox on the right wall.

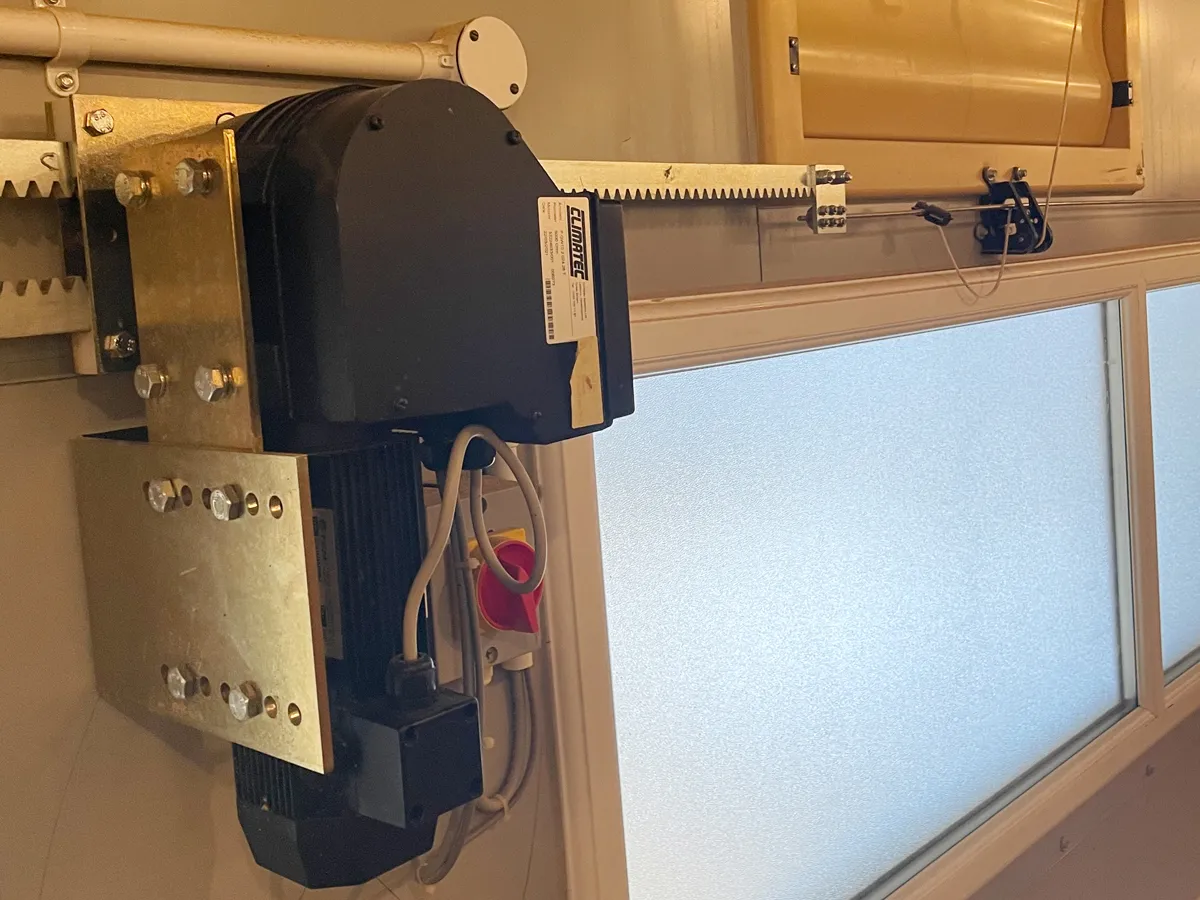

Close-up of a black electric garage door motor unit mounted with metal brackets next to a frosted window.

Limit Switch
System

Download

Installation
Manual

Download

Troubleshooting Gearboxes

Download

chimneys

SCAN-AIR CHIMNEYS

The Scan-Air range of exhaust chimneys are constructed from high density polyurethane in a range of sizes: 370 – 920 mm diameter x chimney height 1000 – 1500 mm
‍
Available as single- or double wall versions, these chimneys are impact resistant, UV resistant and come with a range of options. Different roof profiles are available to suit every application and a compact version is available with 80% volume reduction on shipping.

Gravity Butterfly or Belimo | Rain caps | Drip trays

Interior of a large poultry farm with metal ceiling, hanging feeders, and ventilation ducts.

See product details

Scan-Air

LIGHT-PROOFING

Ventilation openings often cause unwanted external light influences.Scan-Air light proofing units offer maximum light reduction and are available in a number of options and sizes for inlets, pop-holes and chimneys with galvanised or plastic housing.

See product details
