Hot Water Heaters – effective heating without CO2
The Climatec Heat-X hot water driven heaters are amongst the most powerful on the market.
When compared with similar devices, these units use 50% of the power consumption for the same heating capacity, requiring approximately 7.6 watts of electrical power per 1000 watts of heat output, with an air flow of 11,500m3/hr.
A major advantage with using hot water driven heat exchangers, when compared to gas heaters, is that they do not burn oxygen or produce CO2 or steam when generating heat in the growing area.
The Heat-X units are available in both vertical and horizontal models, both giving equal radial heat distribution for optimum efficiency. They are available in capacities ranging from 15kW up to 110kW and a wide range of accessories, including suspension kits and connection hoses, are available.
The units are extremely robust, with easy to clean surfaces, manufactured from stainless steel and high grade plastics. In addition, the spacing between the radiator fins allows for easy cleaning with a high pressure jet.
Benefits include:
Universal application
No noxious gases in the growing area
Energy efficient
Dependent on application/demand, low or high air speeds can be targeted
Durable and robust due to high quality components
Easy to clean with high pressure washer
Equal radial heat distribution

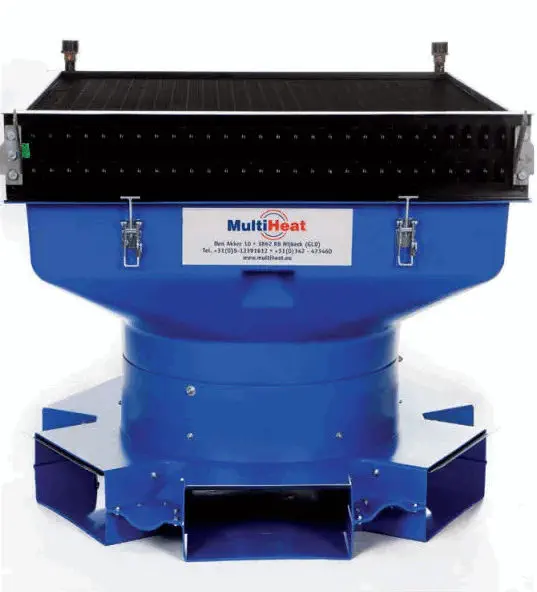

DOWNLOAD MANUALThis unit facilitates horizontal circulation of the air. The air is drawn in at the side and distributed throughout the growing area - this method is suitable for long houses, enabling warm air to reach all sections of the growing area.

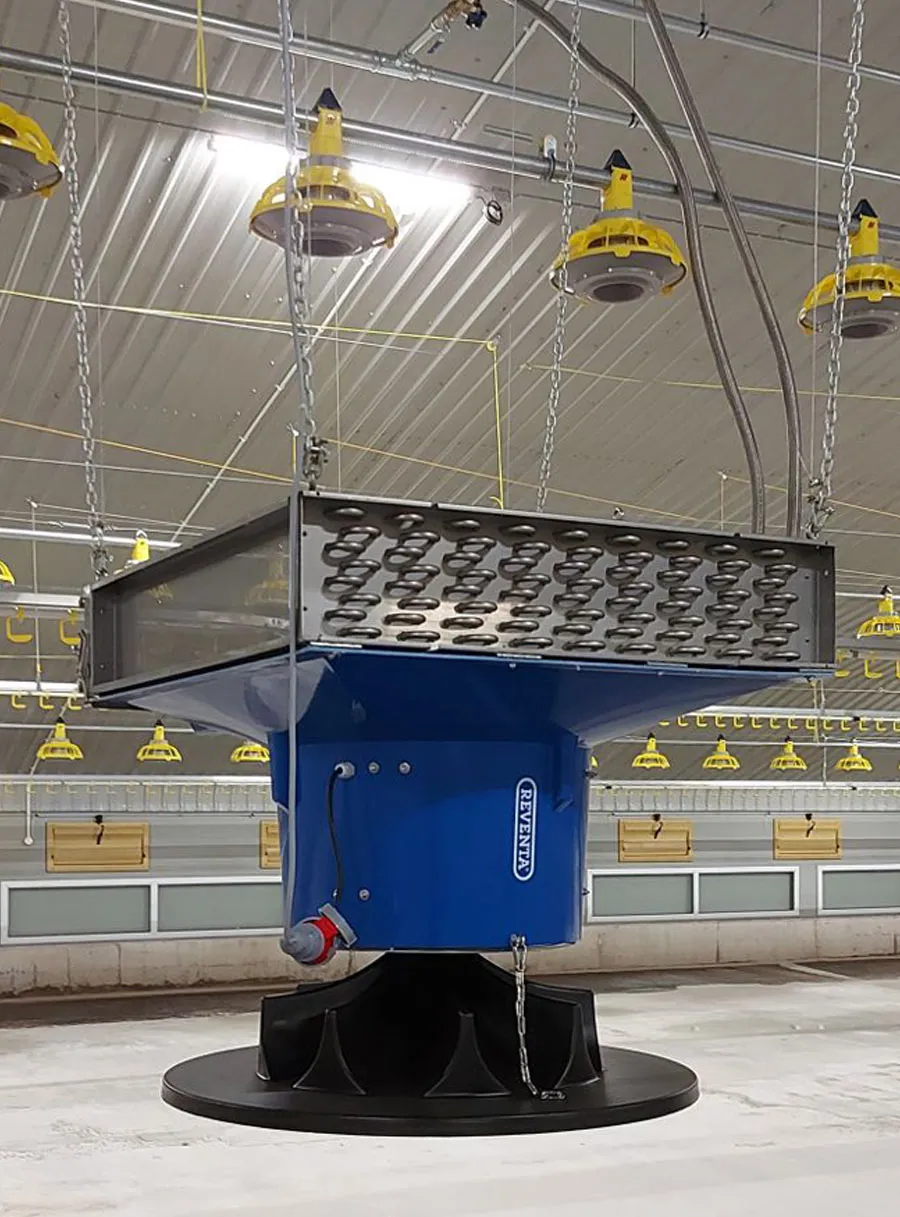

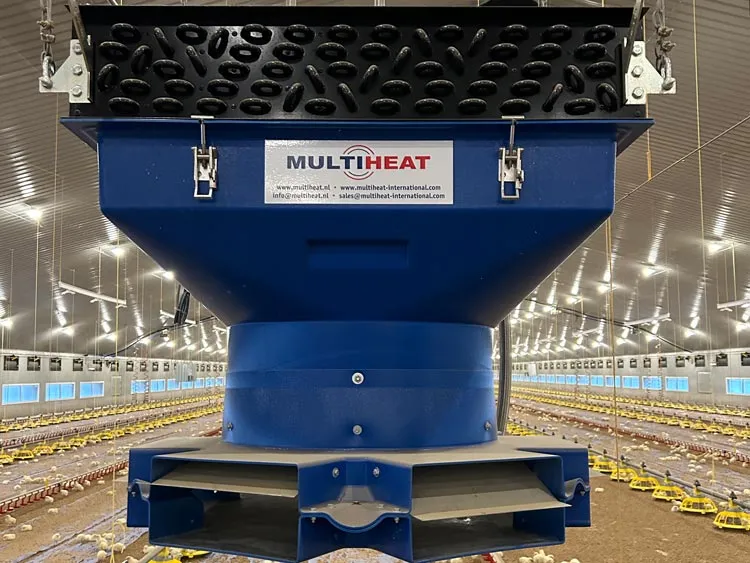

Air is drawn in through the top of the unit and is distributed equally and radially, ensuring a stable environment in different areas. This means that a section of the growing area, where the temperature is lowest can be heated without the need to raise the temperature in the entire growing area, allowing a better and more even distribution of heat. This method is ideal for any size house.
Saving Energy whilst creating a healthy poultry house environment with the
PLUG & PLAY HEAT EXCHANGER
Available in versions achieving 2,500 m3/h, 5,000 m3/h and 9,000 m3/h
Various models available for broiler, rearing, layers and parent stock
Heat recovery efficiency up to 80%
Stainless steel air supply unit with adjustable louvres
Compact unit size
Easy to install and add to existing ventilation system
Ease of operation using the existing climate computer or with the X-control computer
Low maintenance, easy to clean and disinfect
Stainless steel air supply unit with adjustable louvres
A low-cost unit which can be retro-fitted and is ideal for refurbishment projects
Option of stainless steel frame to facilitate external cleaning of exchanger block
Heat recovery efficiency: up to 80%
Air capacity: 2,500 M³/hr
2 x 35 cms fans
Dimensions: 518 L x 822 W x 1,231 mm H (excluding air supply unit)
Weight: 90 kg
Heat recovery efficiency: up to 80%
Air capacity: 5,000 M³/hr
2 x 50 cms fans
Dimensions: 789 L x 818 W x 1,751 mm H (excluding air supply unit)
Weight: 174kg
Heat recovery efficiency: up to 80%
Air capacity: 9,000 M³/hr
1 x 63 cms fan / 1 x 56 cm fan
Dimensions:1,089 L x 1,118 W x 2,101 mm H (excluding air supply unit)
Weight: 253kg
Benefits include:
Heavy duty, robust & weatherproof unit
Superior combustion = 100% thermal efficiency
80kW (273,000BTU/hr) output
Natural or propane gas option
Low noise, high output fan
Trouble-free ignition
Main features:
With an 80kW output the state of the art burner operates on natural or propane gas
Efficient combustion system ensures energy costs are kept to a minimum - the burner has a special gas deflector and electronic ignition with flame control by ionisation detector
Patented system eliminates the risk of malfunction and give perfect ignition - ensuring reliability and durability
Totally weatherproof unit - the cabinet is manufactured in strong, pre-painted galvanised steel.
Simple maintenance - the unit can be disassembled without disconnecting the wires, with access through side-swinging doors
Low noise, high output fan provides excellent heat distribution and constant airflow
Main features:
With an 80kW output the state of the art burner operates on natural or propane gas
Efficient combustion system ensures energy costs are kept to a minimum - the burner has a special gas deflector and electronic ignition with flame control by ionisation detector
Patented system eliminates the risk of malfunction and give perfect ignition - ensuring reliability and durability
Totally weatherproof unit - the cabinet is manufactured in strong, pre-painted galvanised steel.
Simple maintenance - the unit can be disassembled without disconnecting the wires, with access through side-swinging doors
Low noise, high output fan provides excellent heat distribution and constant airflow
