Welcome to our range of digital thermostats and controllers to monitor and control the environment. These units provide a reliable, economical, simple and precise means of automatically controlling:

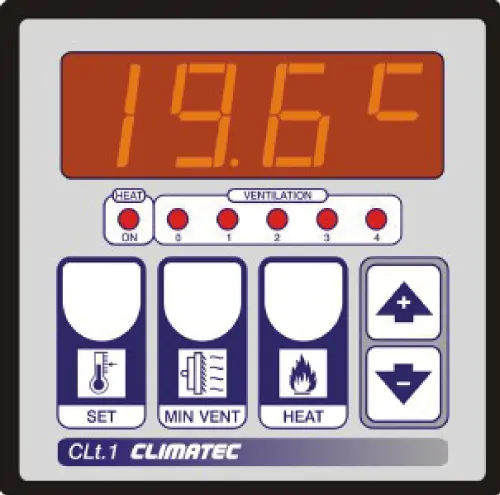

Simple to use with remote sensor monitoring
Temperature display in °C or °F
Fans controlled over four sequential stages
Min ventilation via inbuilt cycle timer operating on first stage, with easily adjustable on / off times and the ability to operate multiple stages
Independent heating set point
Single heating output relay – add the HPAL dual relay extension unit to provide a double level heating output, ideal for biomass installations
Ideally suited to new installations and simple upgrades of existing four-stage capillary thermostat systems
Supplied with 1 x SX Temperature sensor
Available as panel or surface-mount

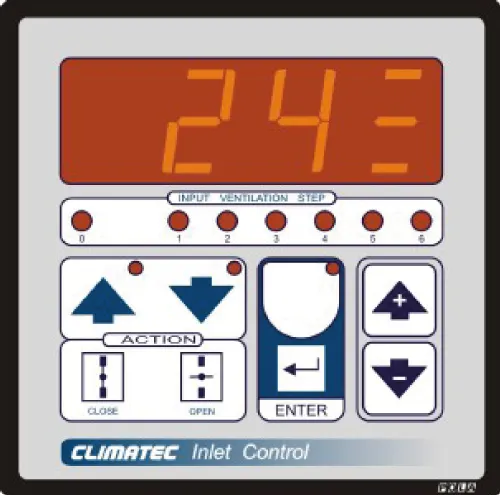

Simple operation for opening and closing inlets in stages
An extension to existing controls e.g. CLT1 Four Stage Thermostat and the HC38A Ventilation Controller
Inlet settings for each fan stage are easily set and altered to accommodate climate change and growth cycles
Interface for connection via the fan panel to the fan stages
Inlet control output can be connected to any suitable geardrive controller
Can control any geardrive controller using either: Open and close control or 0-10 Volt analog control
Wide range of gear drives, actuators, and modular side/ceiling inlets available
Installation can be carried out by Climatec Group engineers
Available as: Panel Mount

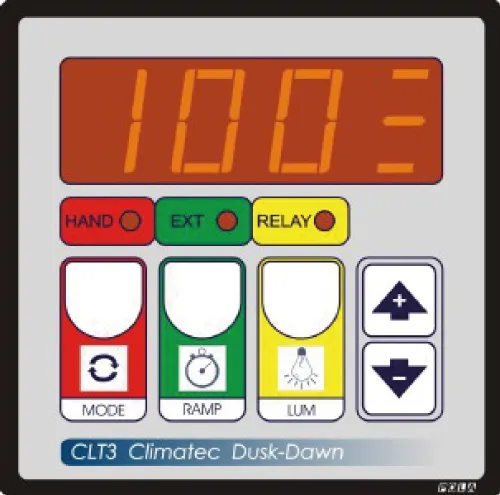

Digital dawn/dusk 0-10VDC controller designed for dimming high frequency fluorescent light fittings
Other types of fluorescent & tungsten lighting can also be controlled with the addition of suitable load control devices
Ramp up (dawn) and down (dusk) times are independently adjustable to simulate natural light patterns
Dawn & dusk cycles triggered via external time clock contact
Allows setting of minimum & maximum percentage light levels
Digital display shows the current lighting level
Manual override of the light level and ramp times by the push of a button
Can be built into a Climatec, built to order, lighting control panel
Available as: Panel Mount

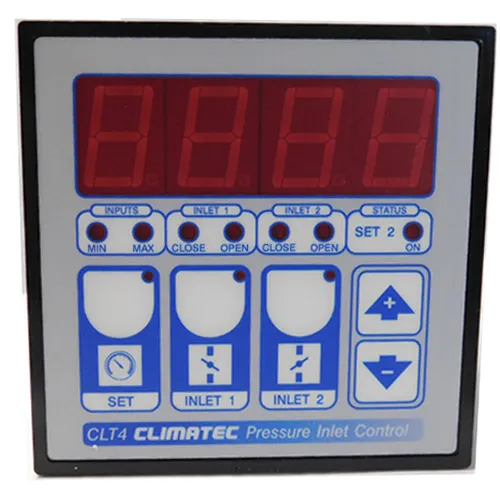

Designed to be a direct replacement of Climatec's Air Pressure Control
Large display shows current pressure
Can operate up to two inlet drive systems with position feedback
Easy feedback potentiometer calibration procedure
All settings easily adjustable
Minimum and maximum controls tie in to the fan stages - Inlets will open immediately to the minimum position setting when the first stage (cycle timer) fans switch on | Maximum position will automatically be set to 100% as the ventilation control advances up through the stages
Option to have the Pressure control operate at a different pressure setting via external contact. e.g. higher pressure setting for cold nights
Can be used to upgrade existing pressure controls or as a new standalone product using a DP59/W Pressure Sensor
Available as: Panel Mount
Can be built into a Climatec, built to order, inlet control panel

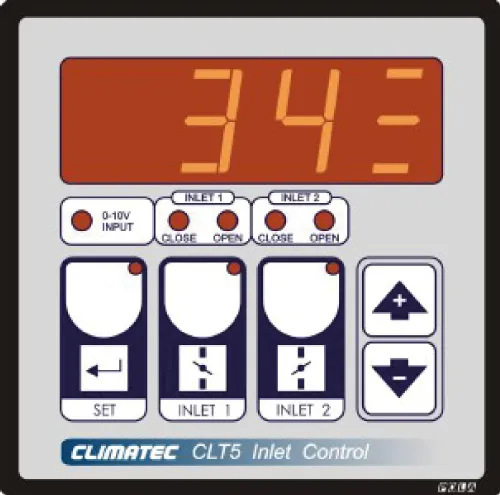

An expanded version of the CLT2 Digital Inlet Position Control providing simple operation of opening and closing inlets in stages
Can be used to control up to two inlet gear drives in one of three ways: 12 stage position control | 6 independent stages of position control per geardrive | 0-10 volt input control
Easy to read large digital display can show: Input condition & Geardrive position
Easy feedback potentiometer calibration procedure
All settings easily adjustable
Inlet control output can be connected to any suitable geardrive controller
Available as: Panel Mount
Temperature monitored by single remote sensor
Bright, easily read display shows temperature in the zone
Two separate relay outputs with independently adjustable setpoints
Switching differential of each relay can be individually adjusted
Indicator lamps below the main display show output state of relays
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount
Simply operated alarm thermostat suitable for new installations and simple upgrades

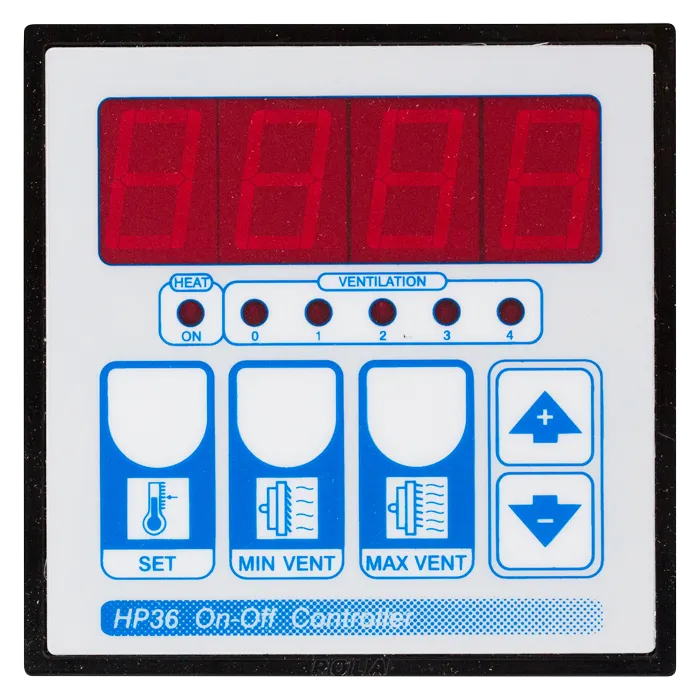

Simple to use ventilation control thermostat
Temperature monitored by single remote sensor
Temperature displayed in °C or °F
Fans controlled over four sequential stages
Inbuilt cycle timer operating on first stage provides minimum ventilation with easily adjustable on / off times
One heating output relay
Heating setpoint is relative to the ventilation temperature setting
Easily adjustable offset and switching differential
Ideally sited to new installations and simple upgrades of existing four stage capillary thermostat systems
Supplied with 1 x SX temperature sensors
Available as panel or surface mount
Monitors temperature from a single remote sensor
Large display shows current temperature
Temperature can be displayed in either °C or °F
Single relay output controls heating or cooling
Adjustable switching differentials
Indicator lights show the output status
Min. and max. temperature memory
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount

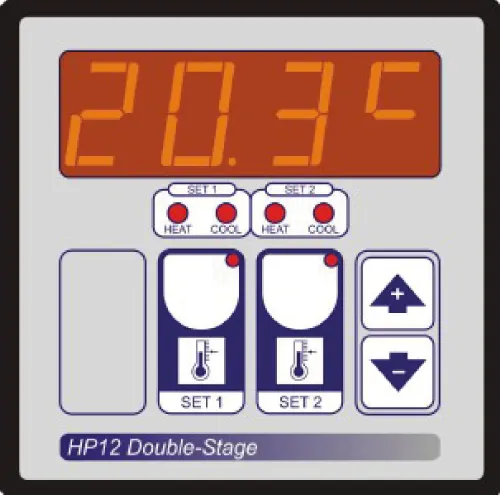

The HP12 monitors temperature in one zone from a single remote sensor.
Bright display shows zone temperature
Temperature can be displayed in either °C or °F
Min. and max. temperature recall
Two separate relay outputs - independently adjustable
Indicator lamps show relay output
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount

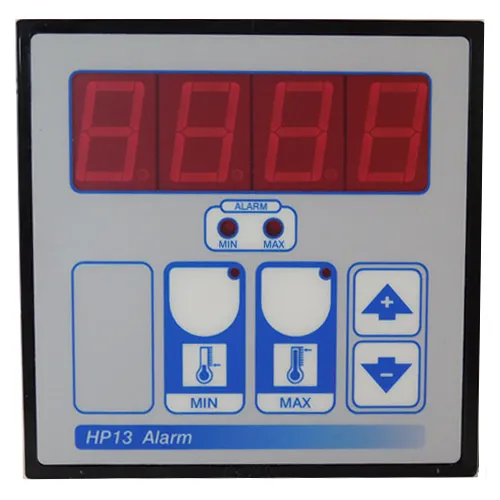

Monitors temperature in a single zone using a single remote sensor
Large digital display shows the temperature in the zone
Temperature display in either °C or °F
Single relay output for both high and low alarm output
Setpoint and adjustable switching differentials
Indicator lamps show the output of the control
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount

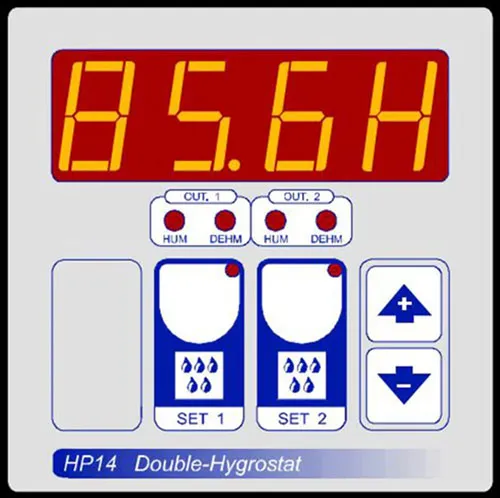

Monitors Humidity in a single zone from a single Humidity Sensor
Bright display shows zone humidity
Min. and Max. Humidity recall
Can be used to Humidify or Dehumidify
Two seperate relay outputs - independently adjustable
Indicator lamps show relay output
Requires: Humidity Sensor, HALI Power Supply. Both sold separately
Available as: Panel Mount or Surface Mount

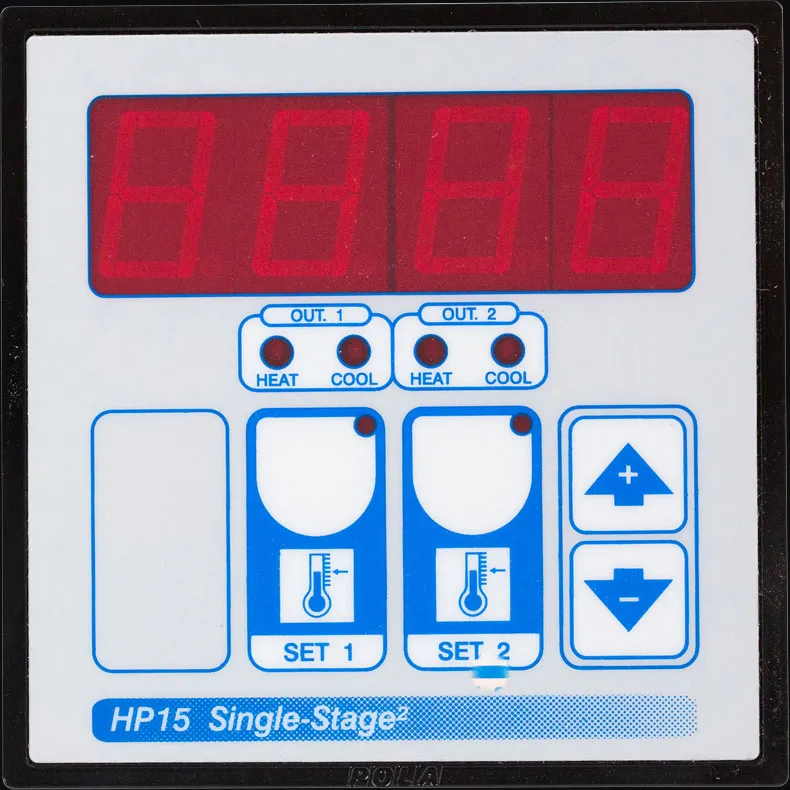

Monitors temperature in two zones via the two independent remote sensors
Supplied with: 2 x SX Temperature Sensors
Indicator lamps show the output condition of each zone
Two output relays with independent setpoints and switching differentials
The large display shows the temperature in the selected zone
Available as: Panel Mount or Surface Mount
Monitors temperature in one zone using a single remote sensor
Large display shows current temperature
Temperature can be displayed in either °C or °F
Temperature setpoint and differentials can be individually set
Controls inlet drive motor using a timer control
This control does not use a feedback potentiometer
Min. and max. temperature memory
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount
Monitors temperature in two zones using a two remote sensors
Large digital display shows temperature
Temperature can be displayed in either °C or °F
Temperature setpoint and differentials can be individually set
Controls inlet drive motor using a timer control
This control does not use a feedback potentiometer
Two zone min and max alarm function using the HPAL Dual Relay Extension Unit
Supplied with: 2x SX Temperature Sensor
Available as: Panel Mount or Surface Mount

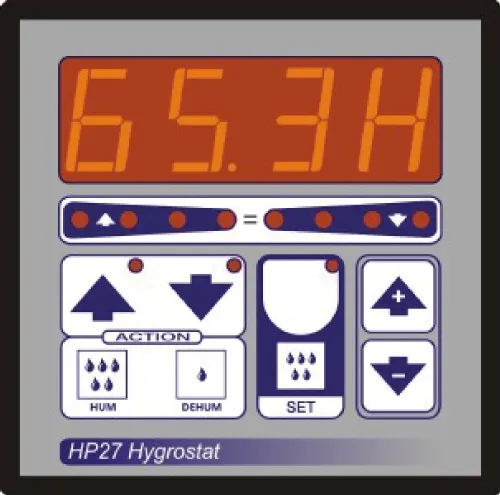

Monitors Humidity in a single zone from a single remote Humidity Sensor
Bright display shows zone humidity
Min. and Max. humidity recall
Can be used to humidify or dehumidify
Built in cycle timer
Single relay output
Indicator lamps show relay output
Requires: Humidity Sensor, HALI Power Supply. Both sold separately
Available as: Panel Mount or Surface Mount

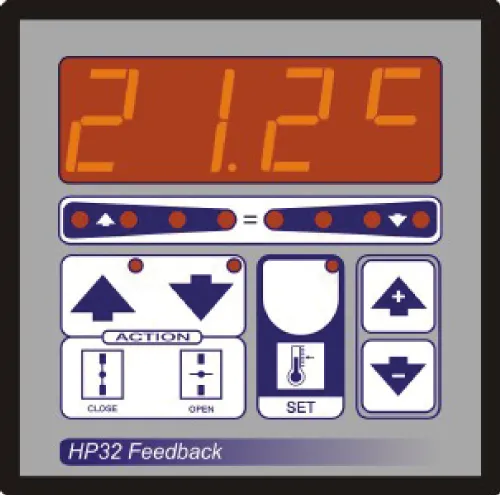

Monitors temperature in one zone using a single remote sensor
Large digital display shows temperature
Temperature can be displayed in either °C or °F
Temperature setpoint and differentials can be individually set
Min. and Max. inlet position is adjustable
Controls inlet drive motor's position across a user changeable bandwidth
This control requires the use of a feedback potentiometer
Min. and max. temperature memory
Supplied with: 1x SX Temperature Sensors
Available as: Panel Mount or Surface Mount
Monitors up to 2 wind speed sensors
Two relay outputs for danger signal output, one for each sensor
Two relay outputs for danger signal output, one for each sensor
User adjustable output delay time
Display can show wind speed in km/h, m/sec and knots
Min and max wind speed memory recording for each sensor
Requires 2x Wind Sensors (sold separately)
Available as: Panel Mount or Surface Mount
.gif)
Monitors temperature and Humidity in a single zone
Built in cycle timer for air changes using the HPAL Dual Relay Extension Unit
Large display shows temperature and humidity readout with a key press
Indicator lamps show relay outputs
Alarm output using the HPAL Dual Relay Extension Unit
Temperature can be displayed in °C or °F
Min. and max. temperature recall
Supplied with: 1x SX Temperature Sensor
Available as: Panel Mount or Surface Mount
Monitors various inputs: Air Temperature | Soil Temperature | Max Heat Temperature | Relative Humidity | Light Level | Wind Speed & Direction with HP33 Wind Surveyor option | Rain Sensor
Can Control:Up to 2 ridge windows | 1 lateral window | Automatic shade | 2 levels of heating, base and extra | Temperature alarm
Min. and max. temperature memory
Night mode closes the shade and switches on the night heating reduction
Shade has a morning delay to allow the shade to remain closed after night mode finishes
Rain sensor closes ridge windows to a settable minimum position and the side window fully
Wind surveyor closes one of the two ridge windows depending on which direction the wind is blowing from
Supplied with: 3x SX Temperature Sensors | 1x Light sensor | 1x HPAL Dual Relay Extension Unit | 1x HDY6 Six Relay Extension Unit
Available as: Panel Mount

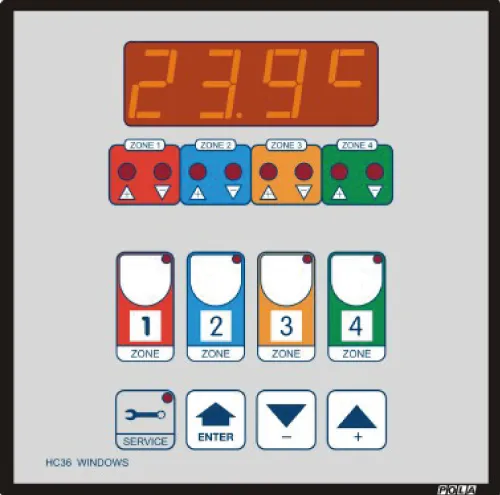

Controls up to four inlet zones
Monitors temperature in 4 zones from 4 remote sensors
Each zone can be configured to control inlets without feedback potentiometer / inlets with feedback potentiometer / heating
Large display shows temperature in the selected zone
Min / Max memory recall for each of the four zones
Each inlet zone has independent Min / Max opening positions
Indicator lamps show status of relay outputs
Simple feedback potentiometer calibration procedure
Eight relay outputs – two per zone (open & closed)
Supplied with four x SX temperature sensors
Available as: Panel Mount

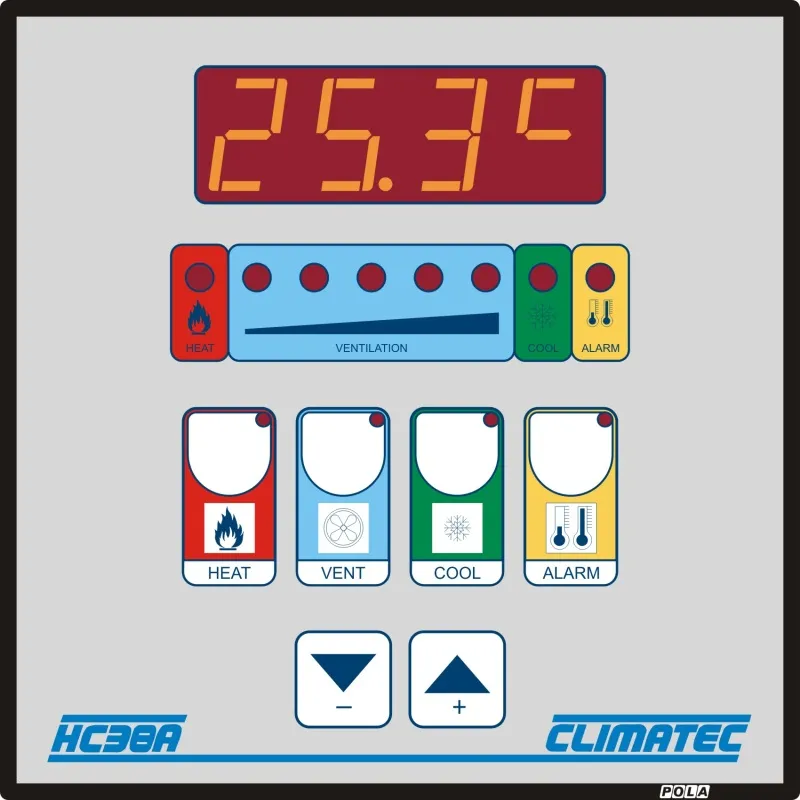

Comprehensive five or six stage ventilation controller
Incorporates heating, cooling and alarm functions
Temperature can be displayed in °C or °F
Fully adjustable
Min / Max memory can be reset by user
Minimum ventilation via inbuilt digital cycle timer with adjustable on/off
Adjustable number of stages for minimum ventilation
Independent heating and cooling output relays
Variable switching differentials
Single alarm output with high & low temperature settings
Six stage configuration achieved by incorporating the cooling control into the ventilation control
Supplied with one x SX temperature control
Available as: Panel Mount
