Choosing a DOL sensor gives you a high-quality sensor that is innovative, functional, robust and accurate with an extremely low failure rate. This range of sensors provides accurate data, vital to farm production. We can offer a wide range of sensors, so please contact us if you cannot see the sensor you require.
Specifically designed for continuous measurement of Ammonia (NH3) concentration in livestock houses. The sensor can accurately measure the level of ammonia in both low and high concentrations and has a negligible cross-sensitivity to other gasses.
Highly accurate measurement | Negligible cross-sensitivity to other gasses | Works in both high and low NH3 concentrations | Robust and ideal for livestock facilities | Easy to install and plug and play replacement | Requires no calibration during service life | Low maintenance | Long lifetime | Integrates easily into existing houses and climate control systems
Measures remaining ammonia concentration after passage of filters on clean gas side of air cleaners. This data is vital to document the cleanness of the exhaust air. Combined with data from DOL 53 on the inlet side, data from DOL 51 can be used to ensure that air cleaners run as efficiently as possible. It provides accurate ammonia measurements in concentrations up to 50 ppm and is mounted directly in the airstream without the need for tubes or pumps.
Accurate ammonia measurements | Ensures air cleaners run efficiently | Documents the cleanness of the exhaust air | Highly reliable | Operates in extreme humidity of 95-100%
A high-precision sensor for measuring relative humidity, crucial to maintaining an optimum climate within the livestock housing.A microprocessor controls the sensor and has a two-colour LED for communication of operation status and error diagnostics.
Ensures optimal climate | Increased animal welfare | A protective cap eliminates the need for removal during cleaning | Very low output resistance | Full protection against short circuits and wiring failures | Measures humidity with high precision | Compatible with al types of farm management systems and controllers

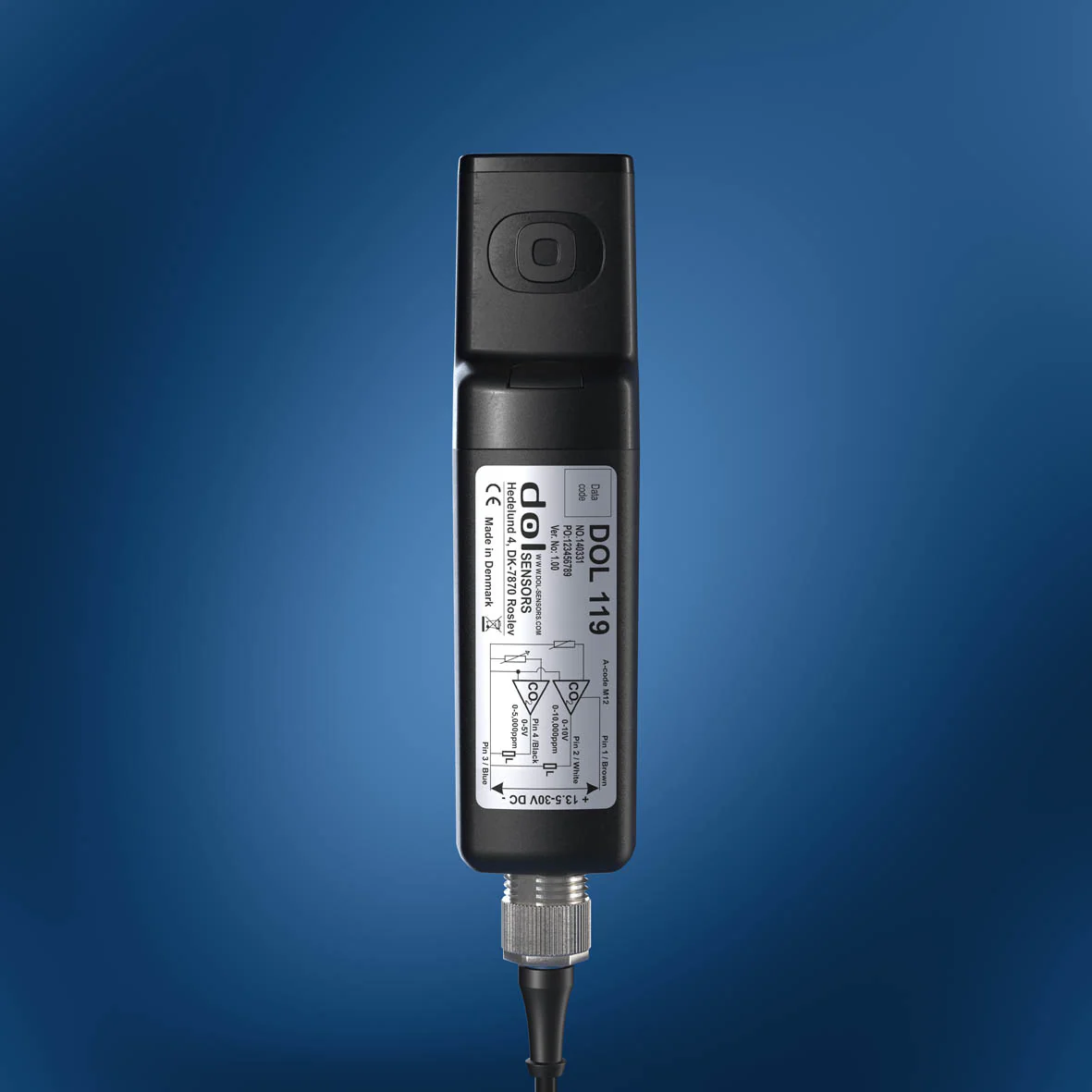

A new generation CO2 sensor that withstands high-pressure cleaning. This sensor measures the carbon dioxide level and air quality in livestock houses. The new robust DOL 119 is IP 67 protected and has a waterproof cap which means the sensor can with stand high pressure cleaning. The sensor is placed in the middle of the house, not on the wall, and therefore measures the level of CO2 reliably and accurately.
Avoids the accumulation of CO2 | Withstands high-pressure cleaning | Improves animal welfare | Collects data for management purposes | Can be customised for any farm management system | Reliable and accurate monitoring of the CO2 levels | CO2 measurement time improved by over 100%
A robust light sensor specifically designed to measure light intensity in livestock housing, enabling the implementation of an efficient lighting plan, to improve animal welfare and regulate the day-night cycle. Connecting the DOL 16 to a lighting control system enables energy-saving.
Optimal lighting conditions | Improved animal welfare | Increased productivity | Energy-saving | Long lifetime | IP67 protected

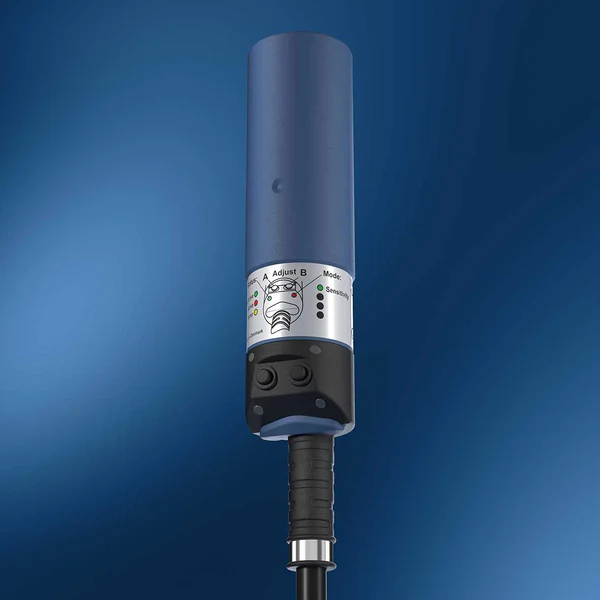

This is a capacitive proximity sensor with no time delay, for detection of feed, grain and solids in a feeding system. LEDs indicate when the switches are activated. The DOL 41 has no time delay – the relay switches as soon as the sensor is activated and remains in this position until the activating factor stops. Highly reliable, the DOL 41 has a powerful built-in 10A relay with switch function. The sensors are available in two variants: 10-30V AC/DC and 90-250V AC.
No time delay | Ease of operation | Reliable sensor with long lifetime | LEDs indicate when the switches are activated | Immunity to external electronic noise | IP 67 protection | CE, C-UL and UL approved
The DOL 43 is a capacitive proximity sensor with an option for delayed switch-off and management of the delay length, designed to detect feed, grain and solid materials. LEDs indicate when the switches are activated and this sensor has an option for delayed switch-off and management of the delay length. When the activation stops, the time delay starts. When the delay expires, the relay switches back; the delay length is easily adjusted by two switches. Highly reliable, the DOL 43 has a powerful built-in 10A relay with switch function and is available in two variants: 10-30V AC/DC and 90-250V AC.
Option for delayed switch-off and management of the delay length | Ease of operation | Reliable sensor with long lifetime | LEDs indicate when the switches are activated | Immunity to external electronic noise | IP 67 protection | CE, C-UL and UL approved

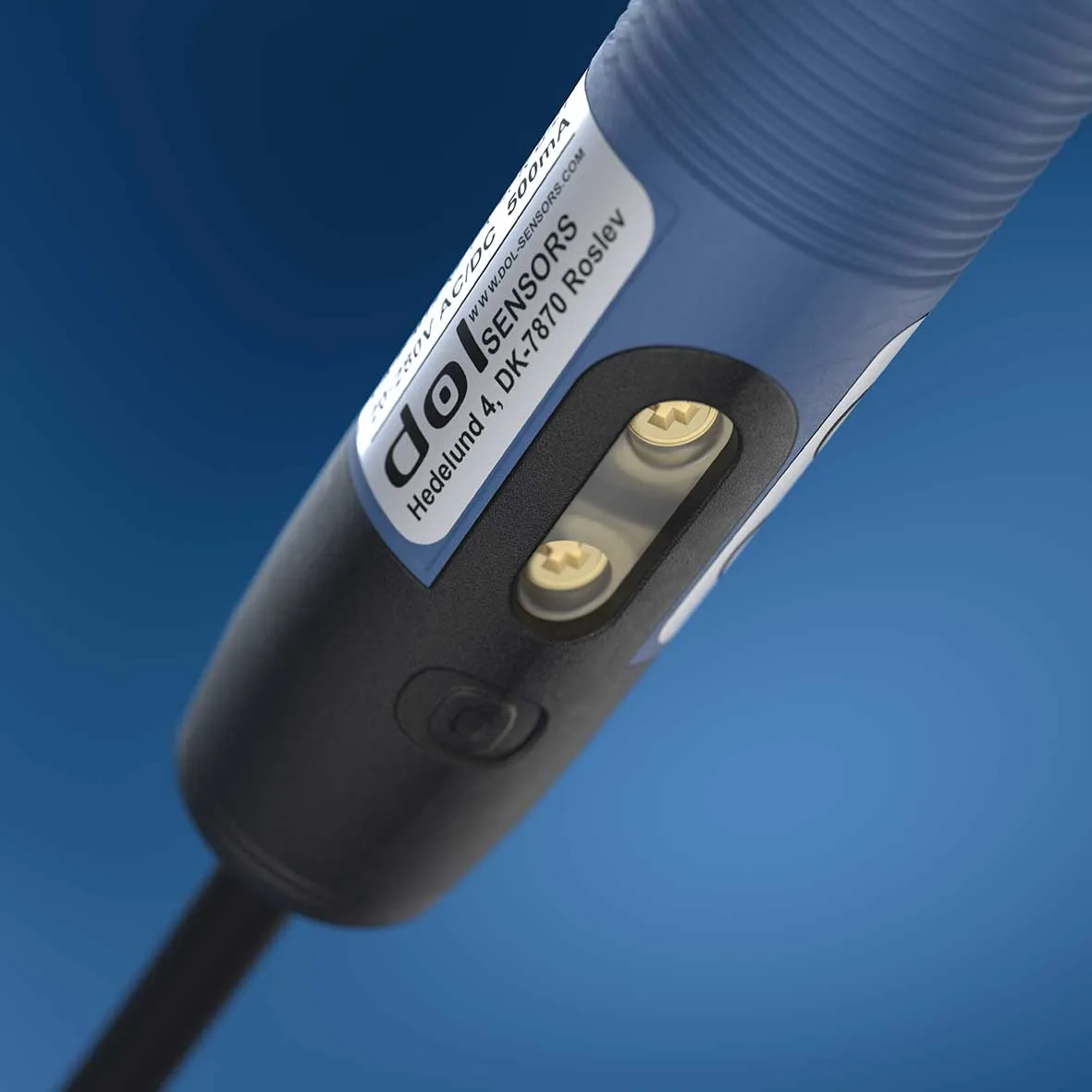

The DOL 26 capacitive sensor is designed to detect loose and solid materials, helping to ensure reliable feed distribution in livestock houses. This sensor is ideal for inclusion in small applications with limited space, such as inside the feed line hopper. Available with both a straight and angled cable exit as well as SCR, PNP and NPN output options with smooth and threaded housings. The cable-return option is especially suited for feeding pans. Energy efficient with very low power consumption in off state, which gives the option for sensors working in parallel on the same contactor.
Easy mounting in feed bin hopper with straight cable or cable return | Accurate sensor | Long lifetime | IP 69 protectionImmune to EMI and short circuits | 2 and 4 wire versions: SCR, NPN or PNP
