Air Inlets

Aeron Inlet

This inlet offers the best features available on the market today.  A centre-hinged inner valve ensures the air flows underneath the valve when it is opened over 1/3rd.  Seals to the sides and top prevent air leakage and a bottom seal ensures perfect closure.  The W-shape of the inner valve helps to create air jets which give optimum control during minimum ventilation.  During maximum ventilation air is guided downwards to deliver a cooling effect.

The inlet has newly-designed clock springs to facilitate automatic opening and closing.  The closing catch on the inlet can be used to permanently close inlets, if required, for pre-heating or in extremely cold external weather conditions.

• Modular design

• Lightweight and highly insulating

• Provides accurate control of the direction and flow of air

• Available in two versions: Surface Mount, Flush Mount

• Optional closing catch available

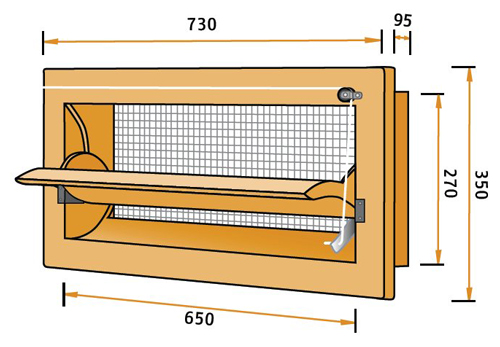

145-VFG

Suitable for almost all applications, this model has the flange on the front side and is controlled by means of one stainless steel side arm.  Up to 35% air intake is from the top only, above 35% air intake is also from the bottom.   This inlet is manufactured with a curved inner flap and is also available in a self-closing version.

• Modular design

• Lightweight and highly insulating

• Provides accurate control of the direction and flow of air

• Available in two versions: Surface Mount, Flush Mount

• Optional closing catch available

Capacity in m3/hour at static pressure of:

Model              10 Pa      20 Pa      40 Pa
145-VFG          1450       2050       2900

TPI WIND HOODS

We offer the TPI Wind Hoods models 145 and 3000 designed to prevent external wind pressure and ensuring a constant air flow through the air inlet valves.

The wind hoods are manufactured from high grade UV-stabilised ABS and designed to be mounted directly to the exterior of the building via special suspension brackets enabling easy removal of the units for cleaning.

Wind hoods are available for TPI Air Inlet models 145-VFG and 3000-VFG-C.

3000-VFG-C

Suitable for almost all applications, this model has a curved inner flap which is hinged in the centre.  This means that fresh air can also enter through the bottom of the flap. Equipped with all-round seals to prevent air leakage and curved inner corners to ensure better airflow.

Available in normal-opening standard version and a self-closing version on request.

Capacity in m3/hour at static pressure of:

Model              10 Pa      20 Pa      40 Pa
3000-VFG-C    2900       4100       5800
